at2 - how to remove Starter Gen Assembly

For specific technical questions and help requests
User avatar
apex
Training Wheels
Posts: 1547
Joined: Mon Nov 15, 2010 8:46 pm
Location: NoCal

Post by apex » Tue Mar 31, 2015 12:28 am

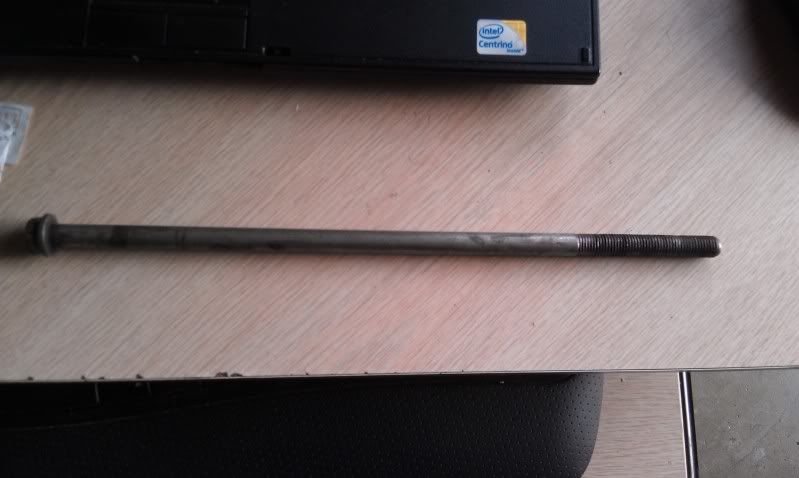

I took an old long engine mount bolt that was 10 X 1.25 to begin with. Most bolts like this have more un-threaded shank than threads. Then got a 10 X 1.25 die and turned new threads, enough to allow the bolt to thread to the bottoming spot, then install & zap with a 1/2" impact.

I think this bolt was from a CB750F, seems Honda likes really long 10MM bolts for multi-cylinder bikes.

whistle
User avatar
apex
Training Wheels
Posts: 1547
Joined: Mon Nov 15, 2010 8:46 pm
Location: NoCal

Post by apex » Tue Mar 31, 2015 12:31 am

Here's an eBay ad with a photo of the 750F bolt.

http://www.ebay.com/itm/Honda-1978-1981 ... 54&vxp=mtr
whistle
User avatar
RCTID
Training Wheels
Posts: 90
Joined: Wed Oct 24, 2012 10:23 am
Location: Pacific NW

Post by RCTID » Tue Mar 31, 2015 10:59 am

Here's what I ended up doing. Got two 10-1.25x50mm bolts (the longest fully threaded I could find locally). Cut off the head of one bolt, cut it down to 1.5", and ground off the thread. Slid the cut one into the armature first and then used the bolt with threads to turn the armature out. Looking back, I could have saved myself some time and just got a smooth metal dowel so slide in there... live and learn. Thanks again for the pointers.

User avatar
fine69
Training Wheels
Posts: 2506
Joined: Sun Sep 04, 2011 9:07 pm
Location: Georgia

Post by fine69 » Tue Mar 31, 2015 6:45 pm

Glad you got it. I thought of the dowel but it is probably hard to find and in 36" lengths minimum. When searching for all thread rod the prices were running in the 70.00 dollar range plus shipping. Good idea Apex.
When you need help in seconds the cops are only minutes away [drnk]
